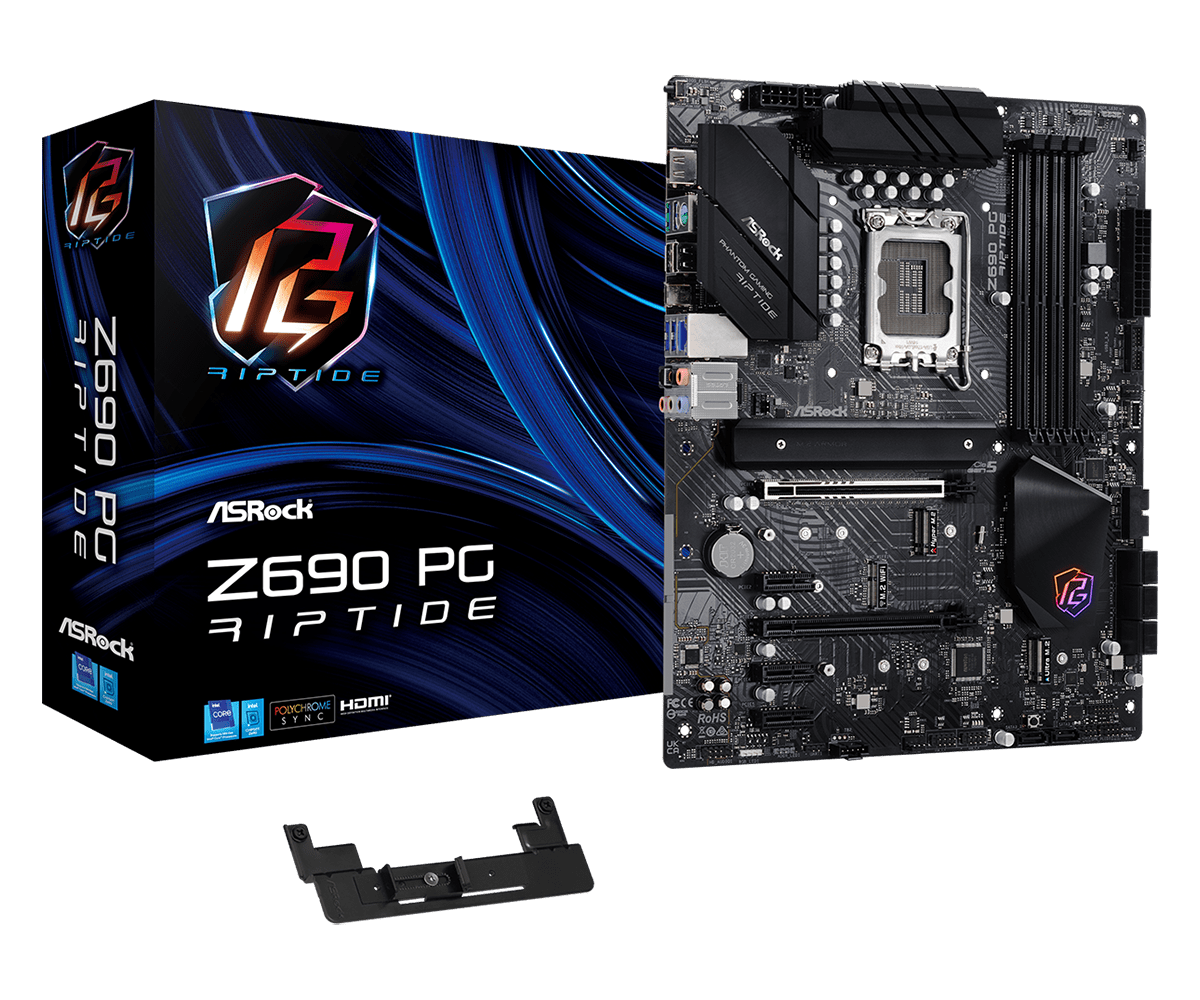

Z690 PG Riptide

Supports 12th Gen Intel® Core™ Processors (LGA1700)

13 Phase  Dr.MOS Power Design

Supports DDR4 4800MHz (OC)

1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1 1 M.2 Key-E for WiFi

Graphics Output Options: HDMI

Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio

 8 SATA3

2 Hyper M.2 (PCIe Gen4 x4)

1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

1 USB 3.2 Gen2x2 Rear Type-C 2 USB 3.2 Gen2 (Rear) 6 USB 3.2 Gen1 (2 Rear, 4 Front)

Killer E3100 2.5G LAN

ASRock Graphics Card Holder

 Lightning Gaming Ports

Optimized VRM Design

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough

to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Killer™ Ethernet E3100

The Killer E3100 2.5 Gbps Ethernet controller is designed specically for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications..

ASRock Graphics Card Holder

Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

Lightning Gaming Ports

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
