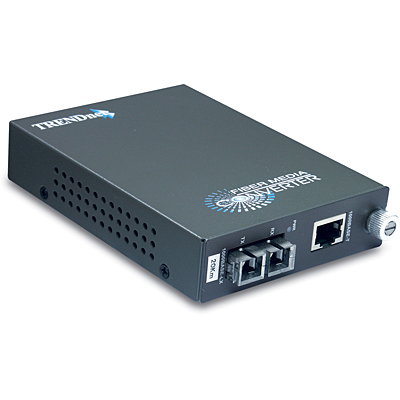

Intelligent 1000Base-T to

1000Base-FX Single Mode SC

Fiber Converter

TFC-1000S20

• SC-type single-mode fiber port connects over distances of up to 20km

• 1000Base-T Gigabit copper port supports Full-Duplex mode

• Supports port level SNMP management

• Functions as a stand alone converter or with the TFC-1600 fiber chassis

The TFC-1000S20 Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit.

This converter is a Single Mode SC-Type fiber converter that supports SNMP and spans distances up to 20km (12.4 miles).

Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-LX (SC-Type) port.

• Compliant with IEEE 1000Base-T and 1000Base-LX
• One 1000Base-T RJ-45 port
• One 1000Base-LX Port w/ SC-Type Connector
• Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
• Wall-Mountable
• Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
• 5-year limited warranty

• Hardware
• Standards:
• IEEE 1000Base-TX and 1000Base-LX
• Supported Frame Size:
• No limitation (Standard Ethernet and Jumbo Frame)
• Network Media:
• • 1000Base-TX: Cat. 5, EIA/TIA-568 100-ohm UTP/STP, up to 100 meters.
  • 1000Base-SX: Multi-Mode fiber optic cable 50/125 µm up to 550 meters. 62.5/125 µm up to 220 meters
  • 1000Base-LX: Single-Mode fiber optic cable 9/125 or 10/125 µm, up to 20 Km
• Wavelength:
• 1300nm
• Protocol:
• CSMA/CD

• Ports:
• 1 x 1000Base-T and 1 x 1000Base-LX
• Data Transfer Rate:
• 1000Mbps
• Diagnostic LEDs:
• Power, Link/Activity, Full-Duplex, and Speed
• Power Adapter:
• 7.5VDC, 1.5A (7.2 watts max.)
• Temperature:
• • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -25° ~ 70° C (-13° ~ 158° F)
• Humidity:
• • Operating: 10% ~ 90%,
  • Storage: 5% ~ 90% (non-condensing)
