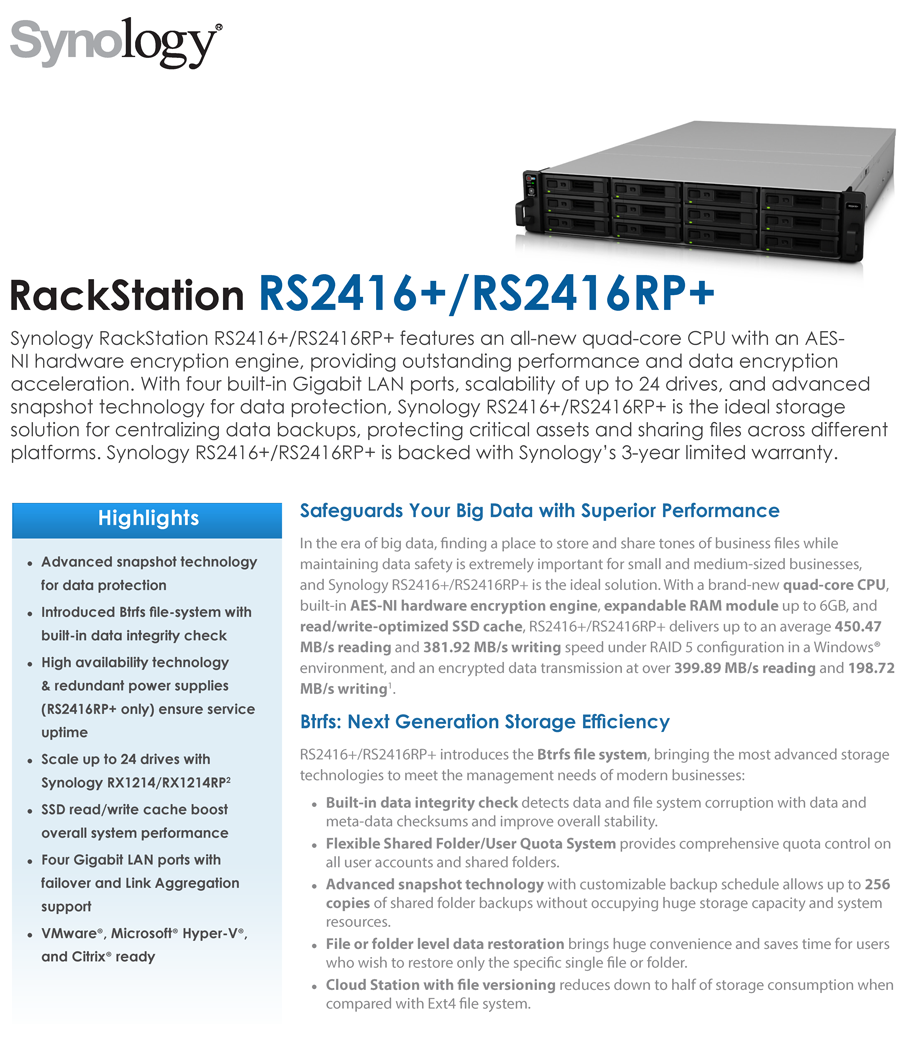

Synology RS2416RP+ Rack Station 12-Bay Diskless Network Attached Storage

Next-generation data protection and integrity

When dealing with large-scale data storage, businesses require a solution that offers reliable backup and prevents file corruption. With support for the next-generation Btrfs file system, RS2416+/?RS2416RP+ ensures information is stored with a high level of data integrity, while providing flexible and efficient data protection tools.

Quad-core CPU for speedy performance

RS2416+/RS2416RP+ is powered by a quad-core CPU running at 2.4 GHz. Combined with 2GB of DDR3 RAM (expandable to 6GB), it delivers blazing-fast performance over 450 MB/s reading and 380 MB/s writing. This kind of power makes it easy for RS2416+/RS2416RP+ to run multiple applications and deliver consistently high throughput to all connected clients.



On-the-fly scalability up to 24 drives

As your data storage needs grow, RS2416+/RS2416RP+ can be connected to a dedicated RX1214/RX1214RP expansion unit3, allowing you to expand storage capacity to 24 drives for a total of 168TB4 without disrupting service. The specially-designed connection cables ensure high-speed data transmission between the main server and expansion unit.



Speedy data encryption with AES-NI

As businesses store more and more critical information in digital form, data encryption has become an essential aspect of any healthy security policy. Equipped with a dedicated AES-NI hardware encryption engine, RS2416+/RS2416RP+ delivers encrypted data transmission speeds over 399 MB/s reading and 198 MB/s writing, making it the ideal digital locker for your sensitive data.



Redundancy mechanisms for higher uptime

RS2416+/RS2416RP+ includes redundant hardware mechanisms to ensure business continuity. The four built-in Ethernet ports with Link Aggregation and failover provide reliability in the event of unexpected hardware failure, while the hot-swappable drives to minimize system downtime during drive replacement. Redundant power supply units5 minimizes the chance of a complete system shutdown due to sudden power loss.

SSD cache technology

RS2416+/RS2416RP+ supports a combination of hard drives and read/write-optimized SSD cache, boosting throughput efficiently while minimizing cost per gigabyte. With full SSD cache reading and writing support, RS2416+/RS2416RP+ offers a significant reduction in I/O latency without crippling your budget. With only a small upfront investment, businesses can benefit from a significant enhancement in server performance.



Award winning OS - DiskStation Manager

Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.

Fit into business environments easily

With the support of Windows AD, LDAP, and Domain Trust, RS2416+/?RS2416RP+ enables seamless account integration. The User Home feature can automatically create a "home" folder for every user account to minimize the administrator's effort in repeatedly creating "home" folders for all accounts. Windows ACL support on RS2416+/?RS2416RP+ allows IT administrators to fine tune access controls and set up privileges to files and folders on RS2416+/?RS2416RP+ through the familiar Windows user interface. With compatibility for major protocols, RS2416+/?RS2416RP+ can eliminate server configuration overhead and enhance IT administrators’ efficiency.

Unified storage system

RS2416+/?RS2416RP+ enables businesses to cost-effectively manage multi-protocol data by integrating file-level (NAS) and block-level (SAN) storage into one unified storage system. Files can be shared across Windows®, Mac®, and Linux® platforms seamlessly with comprehensive network protocol support (CIFS/SMB, AFP, and NFS). RS2416+/?RS2416RP+ provides a cost-effective iSCSI solution, allowing large scale businesses to consolidate storage into data center storage arrays. With thin provisioning available for file-level iSCSI LUN, you can maximize storage utilization by oversubscribing provisions and grow storage space as needed.

Seamless storage solution for virtualization environments

RS2416+/?RS2416RP+ provides seamless storage solutions for virtualization environments, including VMware, Citrix, and Microsoft Hyper-V. With VMware vSphere® 5 & VAAI integration, RS2416+/?RS2416RP+ helps offload specific storage operations and optimizes computation power in VMware environments. Windows ODX support speeds up data manipulation as the data transfer is offloaded. iSCSI also lets SMB users consolidate storage into data center storage arrays while providing hosts with the illusion of locally-attached disks.



Protection by LUN backup, snapshot, and clone

RS2416+/?RS2416RP+ enhances the ease of moving and copying data in a virtualized environment with the features - LUN Backup, LUN Snapshot, and LUN Clone. RS2416+/?RS2416RP+ offers iSCSI LUN backup at storage level without extra charge. Synology LUN Clone and LUN Snapshot only take up 1/1000 of the original size which highly optimizes storage usage. In addition, Synology's LUN Snapshot lets you create up 256 snapshots per LUN using point-in-time technology without having any impact on system performance. With better support to servers under VMware vSphere or Windows environment, IT managers can expect guaranteed VM status and data consistency through application-consistent snapshots.

All-in-one server

With just one RS2416+/?RS2416RP+, it's possible to handle a vast amount of tasks. RS2416+/?RS2416RP+ helps your company gain a competitive edge by acting as your multi-function server. Directory Server provides LDAP service, while DNS and DHCP packages allow you to host a domain name server and automate network IP assignment at no extra cost. With Synology's Proxy Server, you can regulate content access and monitor who can access which website while saving bandwidth. You can host up to 30 websites with Web Station, safeguard the office environments with Surveillance Station, send and receive mails using your own email domain with Mail Station, share printing capability with Printer Server, make RS2416+/?RS2416RP+ act as a VPN server to access company’s resources remotely, and more.

Ensuring business continuity

Uninterrupted availability is a critical goal for all businesses. RS2416+/?RS2416RP+ supports Synology High Availability (SHA) technology which combines an active and passive server into one cluster, the former always mirrored to the latter. The Heartbeat mechanism detects regular "heartbeats" between the two servers. If the main server encounters unexpected downtime, the passive server immediately takes over. With multiple LAN ports, RS2416+/?RS2416RP+ also ensures redundancy in the event of unexpected network failure.

Secure your data

RS2416+/?RS2416RP+ offers advanced security measures to protect you from potential security holes. Security Advisor analyzes system settings, password strength, network preferences and removes any possible malware. AppArmor blocks malicious programs from accessing unauthorized system resources. You can also customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered files. In addition, RS2416+/?RS2416RP+ provides other security add-ons, such as AES encryption, 2-Step verification, IP block & allow list, Antivirus packages, firewall, and DoS attack prevention.

Network security

Antivirus

AES 256-bit encryption

2-Step verification

Trust level
