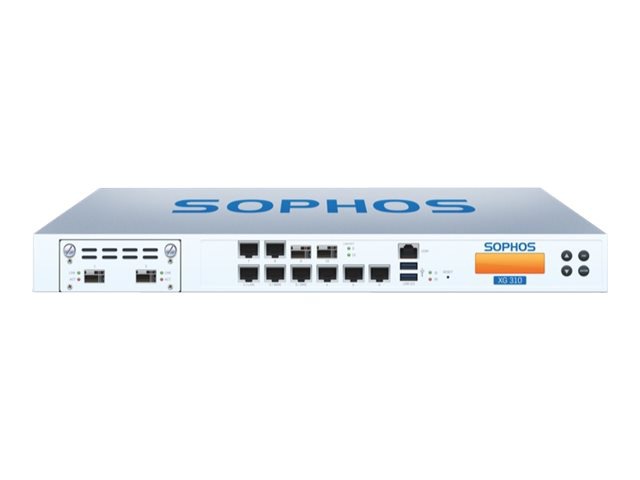

Sophos XG 310 - security appliance

Main Features

• Security appliance
• with 3 years TotalProtect
• 10 ports
• GigE
• 1U
• rack-mountable

The Sophos XG 310 are scalable appliances suitable for distributed organizations or mid-sized companies. With solid-state drives for on-box reporting, logs and spam quarantine, they're highly responsive even in high traffic environments. Each model is equipped with 8 GbE copper ports, 2 GbE SFP fiber ports plus one FleXi Port slot to configure with an optional module. They provide optimal performance and flexibility.

Technical Specifications

• Networking

  • Type :Security appliance
  • Form Factor :Rack-mountable
  • Connectivity Technology :Wired
  • Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
  • Ports Qty :10
  • Features :Firewall protection, Intrusion Prevention System (IPS), Modular design, VPN support, Web threat protection

• Interface Provided

  • Qty :1
  • Type :RS-232
  • Qty :2
  • Type :1000Base-X
  • Connector Type :SFP (mini-GBIC)
  • Qty :8
  • Type :1000Base-T
  • Connector Type :RJ-45
  • Type :USB 2.0
  • Type :USB 3.0
  • Connector Type :Type A
  • Type :VGA
  • Connector Type :HD-15

• Miscellaneous

  • Compliant Standards :CB, CCC, FCC Class A certified, IC, RCM, UL, VCCI
  • Height (Rack Units) :1

• Cabinet

  • Chassis Built-in Devices :Status LCD

• Environmental Parameters

  • Min Operating Temperature :32 °F
  • Max Operating Temperature :104 °F
  • Humidity Range Operating :0 - 90% (non-condensing)

• Header

  • Compatibility :PC
  • Country Kits :United States
  • Manufacturer :Sophos Appliances
  • Packaged Quantity :1
  • Product Line :Sophos XG
  • Model :310
  • Brand :Sophos

• Power Device

  • Frequency Required :50 - 60 Hz
  • Installed Qty :1
  • Max Supported Qty :1
  • Power Consumption Operational :50 Watt
  • Nominal Voltage :AC 120/230 V
  • Type :Internal power supply

• Service & Support

  • Bundled Services :3 years TotalProtect

• Slot Provided

  • Total Qty :1
  • Free Qty :1

• Storage Hard Drive

  • Capacity :180 GB

• Capacity

  • Type :Concurrent connections
  • Value :17500000
  • Type :Maximum number of users
  • Value :Unlimited

• Performance

  • Type :Antivirus throughput (proxy)
  • Value :3.3 Gbps
  • Type :Connection rate
  • Value :200000 connections per second
  • Type :Firewall throughput
  • Value :25 Gbps
  • Type :Intrusion prevention throughput
  • Value :5.5 Gbps
  • Type :VPN throughput
  • Value :2.5 Gbps

• Dimensions & Weight

  • Width :17.2 in
  • Depth :11.5 in
  • Height :1.7 in
  • Weight :11.46 lbs

• Expansion Slots

  • Type :Expansion slot

• Hard Drive

  • Installed Qty :1
  • Type :SSD

• RAM

  • Installed Size :12 GB
