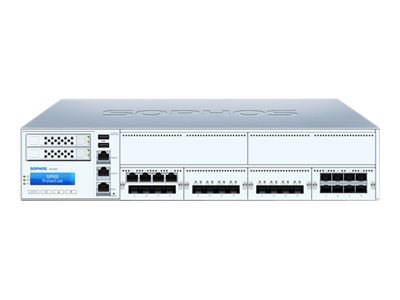

Sophos XG 550 - security appliance

Main Features

• Rev 2
• security appliance
• 8 ports
• GigE
• 2U
• rack-mountable

The Sophos XG 550 is high-performance firewall equipped to provide protection for larger distributed and growing organizations. They offer CPU technology to effortlessly handle use as an all-in-one solution or a powerful next-generation firewall. The models offer 3 FleXi Port expansion bays to tailor your connectivity to your environment. Hot-swappable dual SSDs and power supplies are standard redundancy features in this class.

Technical Specifications

• Networking

  • Type :Security appliance
  • Form Factor :Rack-mountable
  • Connectivity Technology :Wired
  • Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
  • Ports Qty :8
  • Features :Firewall protection, Hot swappable 4 fans, Intrusion Prevention System (IPS), Modular design, VPN support, Web threat protection

• Interface Provided

  • Qty :1
  • Type :Serial
  • Qty :2
  • Type :USB 2.0
  • Qty :8
  • Type :1000Base-T
  • Connector Type :RJ-45
  • Type :Management
  • Type :USB 3.0
  • Connector Type :Type A
  • Type :VGA
  • Connector Type :HD-15

• Miscellaneous

  • Compliant Standards :BIS, CCC, CRS, FCC, ISED, RCM, UL, VCCI
  • Height (Rack Units) :2
  • Included Accessories :Sliding rack rails

• Cabinet

  • Chassis Built-in Devices :Status LCD

• Environmental Parameters

  • Min Operating Temperature :32 °F
  • Max Operating Temperature :104 °F
  • Humidity Range Operating :5 - 90% (non-condensing)

• Header

  • Compatibility :PC
  • Country Kits :United States
  • Manufacturer :Sophos Appliances
  • Packaged Quantity :1
  • Product Line :Sophos XG
  • Model :550
  • Brand :Sophos
  • Edition :Rev 2

• Power Device

  • Frequency Required :50/60 Hz
  • Installed Qty :2
  • Max Supported Qty :2
  • Power Consumption Operational :416.1 Watt
  • Nominal Voltage :AC 120/230 V
  • Power Redundancy :Yes
  • Type :Internal power supply
  • Hot-Plug :Hot-plug

• Slot Provided

  • Total Qty :4
  • Free Qty :3

• Storage Controller

  • RAID Level :RAID 1

• Capacity

  • Type :Concurrent connections
  • Value :30000000
  • Type :Maximum number of users
  • Value :Unlimited
  • Type :New connections per second
  • Value :220000

• Performance

  • Type :Antivirus throughput (proxy)
  • Value :10 Gbps
  • Type :Firewall throughput
  • Value :65 Gbps
  • Type :Firewall throughput (IMIX)
  • Value :23 Gbps
  • Type :Intrusion prevention throughput
  • Value :17 Gbps
  • Type :NGFW throughput
  • Value :9 Gbps
  • Type :VPN throughput
  • Value :8.4 Gbps

• Dimensions & Weight

  • Width :17.2 in
  • Depth :23.6 in
  • Height :3.5 in
  • Weight :39.24 lbs

• Expansion Slots

  • Type :Expansion slot

• Hard Drive

  • Installed Qty :2
  • Type :SSD
  • Hot-Swap :Hot-swap
