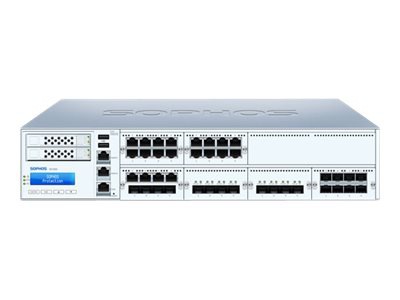

Sophos XG 650- security appliance

Main Features

• Rev 2
• security appliance
• 8 ports
• GigE
• 2U
• rack-mountable

Sophos XG Firewall takes an advanced approach across all areas of network security. From the way firewalls are managed, to the way they report information and how they work with other security systems around them, giving you an unprecedented level of simplicity, insight, and advanced threat protection. The Sophos XG 650 are high-performance firewalls equipped to provide protection for larger distributed and growing organizations. They offer CPU technology to effortlessly handle use as an all-in-one solution or a powerful firewall. The models offer FleXi Port expansion bays to tailor your connectivity to your environment.

Technical Specifications

• Networking

  • Type :Security appliance
  • Form Factor :Rack-mountable
  • Connectivity Technology :Wired
  • Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
  • Ports Qty :8
  • Features :Firewall protection, Hot swappable 4 fans, Intrusion Prevention System (IPS), Modular design, VPN support, Web threat protection

• Interface Provided

  • Qty :1
  • Type :Serial
  • Qty :2
  • Type :USB 2.0
  • Qty :8
  • Type :1000Base-T
  • Connector Type :RJ-45
  • Type :Management
  • Type :USB 3.0
  • Connector Type :Type A
  • Type :VGA
  • Connector Type :HD-15

• Miscellaneous

  • Compliant Standards :BIS, CCC, CRS, FCC, ISED, RCM, UL, VCCI
  • Height (Rack Units) :2
  • Included Accessories :Sliding rack rails

• Cabinet

  • Chassis Built-in Devices :Status LCD

• Environmental Parameters

  • Min Operating Temperature :32 °F
  • Max Operating Temperature :104 °F
  • Humidity Range Operating :5 - 90% (non-condensing)

• Header

  • Compatibility :PC
  • Country Kits :United States
  • Manufacturer :Sophos Appliances
  • Packaged Quantity :1
  • Product Line :Sophos XG
  • Model :650
  • Brand :Sophos
  • Edition :Rev 2

• Power Device

  • Frequency Required :50/60 Hz
  • Installed Qty :2
  • Max Supported Qty :2
  • Power Consumption Operational :493.1 Watt
  • Nominal Voltage :AC 120/230 V
  • Power Redundancy :Yes
  • Type :Internal power supply
  • Hot-Plug :Hot-plug

• Slot Provided

  • Total Qty :6
  • Free Qty :5

• Storage Controller

  • RAID Level :RAID 1

• Capacity

  • Type :Concurrent connections
  • Value :30000000
  • Type :Maximum number of users
  • Value :Unlimited
  • Type :New connections per second
  • Value :240000

• Performance

  • Type :Antivirus throughput (proxy)
  • Value :13 Gbps
  • Type :Firewall throughput
  • Value :85 Gbps
  • Type :Firewall throughput (IMIX)
  • Value :28 Gbps
  • Type :Intrusion prevention throughput
  • Value :20 Gbps
  • Type :NGFW throughput
  • Value :10 Gbps
  • Type :VPN throughput
  • Value :9 Gbps

• Dimensions & Weight

  • Width :17.2 in
  • Depth :23.6 in
  • Height :3.5 in
  • Weight :39.24 lbs

• Expansion Slots

  • Type :Expansion slot

• Hard Drive

  • Installed Qty :2
  • Type :SSD
  • Hot-Swap :Hot-swap
