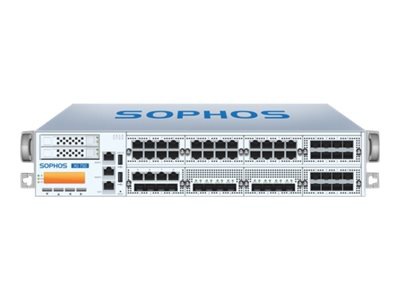

The Sophos XG 750 is a high-performance firewall suitable for high traffic datacenter and large datacenter environments. With a total of 8 FleXi Port bays, one of which comes equipped with a default 8 port GbE copper module, connectivity knows no bounds and can reach a maximum of 64 ports using the optional modules

Main Features

• Security appliance
• with 1 year TotalProtect
• 8 ports
• GigE
• 2U
• rack-mountable

The Sophos XG 750 is a high performance firewall suitable for high traffic datacenter and large enterprise environments. Intel multi core technology and redundancy features such as dual SSDs, power supplies and swappable fans, ensure you're protected at all times. With a total of 8 FleXi Port bays, one of which comes equipped with a default 8 port GbE copper module, connectivity knows no bounds and can reach a maximum of 64 ports using the optional modules.

Technical Specifications

• Networking

  • Type :Security appliance
  • Form Factor :Rack-mountable
  • Connectivity Technology :Wired
  • Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
  • Ports Qty :8
  • Features :Firewall protection, Intrusion Prevention System (IPS), Modular design, VPN support, Web threat protection

• Interface Provided

  • Qty :1
  • Type :RS-232
  • Qty :2
  • Type :USB 2.0
  • Connector Type :Type A
  • Qty :8
  • Type :1000Base-T
  • Connector Type :RJ-45
  • Type :Management
  • Type :USB 3.0
  • Type :VGA
  • Connector Type :HD-15

• Miscellaneous

  • Compliant Standards :CB, CCC, FCC Class A certified, IC, RCM, UL, VCCI
  • Height (Rack Units) :2

• Cabinet

  • Chassis Built-in Devices :Status LCD

• Environmental Parameters

  • Min Operating Temperature :32 °F
  • Max Operating Temperature :104 °F
  • Humidity Range Operating :5 - 90% (non-condensing)

• Header

  • Compatibility :PC
  • Country Kits :United States
  • Manufacturer :Sophos Appliances
  • Packaged Quantity :1
  • Product Line :Sophos XG
  • Model :750
  • Brand :Sophos

• Power Device

  • Frequency Required :50 - 60 Hz
  • Installed Qty :2
  • Max Supported Qty :2
  • Nominal Voltage :AC 120/230 V
  • Power Redundancy :Yes
  • Type :Internal power supply
  • Hot-Plug :Hot-plug

• Service & Support

  • Bundled Services :1 year TotalProtect

• Slot Provided

  • Total Qty :8
  • Free Qty :7

• Storage Controller

  • RAID Level :RAID 1

• Storage Hard Drive

  • Capacity :512 GB

• Capacity

  • Type :Concurrent connections
  • Value :20000000
  • Type :Maximum number of users
  • Value :Unlimited

• Performance

  • Type :Antivirus throughput (proxy)
  • Value :17 Gbps
  • Type :Connection rate
  • Value :200000 connections per second
  • Type :Firewall throughput
  • Value :140 Gbps
  • Type :Intrusion prevention throughput
  • Value :22 Gbps
  • Type :VPN throughput
  • Value :11 Gbps

• Dimensions & Weight

  • Width :17.2 in
  • Depth :23.6 in
  • Height :3.5 in
  • Weight :50.71 lbs

• Expansion Slots

  • Type :Expansion slot

• Hard Drive

  • Installed Qty :2
  • Type :SSD
  • Hot-Swap :Hot-swap

• RAM

  • Installed Size :64 GB
