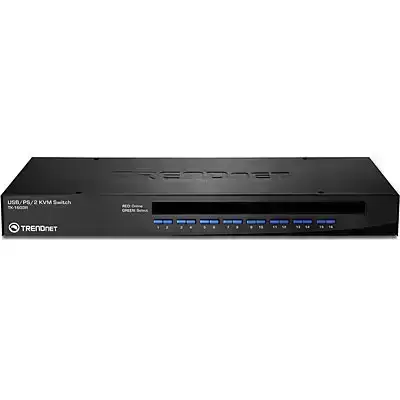

16-Port Rack Mount USB KVM SwitchTK-1603R (Version v1.1R)
|
The 16-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 16-Port USB KVM Switch is the perfect choice for managing multiple PC's.
- Controls up to 16 computers or servers
- Supports both USB and PS/2 Interface for console port
- Supports Windows, Linux, Mac and more
- High video quality- up to 2048 x 1536 VGA resolution
- Firmware upgradeable via PC port
- Auto-Scan and LED display for monitored PCs
- Keyboard status restored when switching between PCs
- LEDs display for easy status monitoring
- Beeping sound for port switching confirmation
- Hotkey or push button switching
- Plug & Play and hot-pluggable
- Standard 19” (1U) rack mount design
- 2-year limited warranty
Hardware
- Connections
- 16 computers or servers
- Standard
- USB 1.1 Compliant

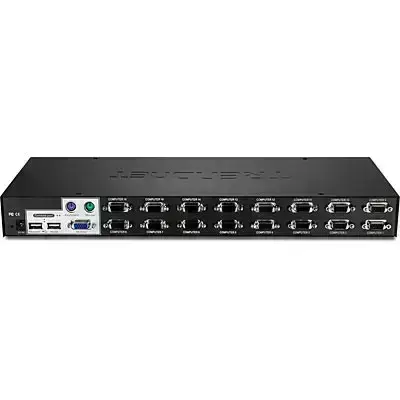

- PC Port
- 16 x VGA HDB 15-pin (female)

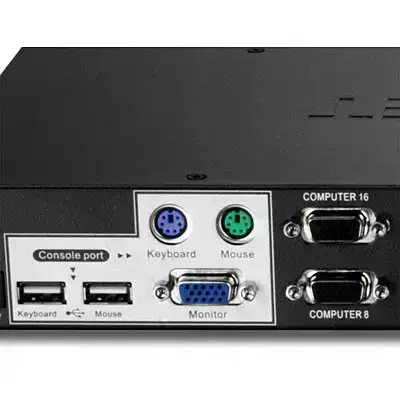

- Console Port
- 1 x USB (Type A) / PS/2 (6-pin mini-DIN) Mouse
- 1 x USB (Type A) / PS/2 (6-pin mini-DIN) Keyboard
- 1 x VGA HDB 15-pin (female)
- Cable Interface (Optional, not included)
- To KVM
- 1 x VGA HDB 15-pin (male)
- To PC
- 1 x VGA HDB 15-pin (male)
- 1 x USB (Type A)
- Supported OS
- Windows , Linux and Mac.
- PC Selection
- Hot-Key or Push Buttons
- Auto-Scan Interval
- 10-100 seconds (Programmable through Hot-Key)
- LEDs
- On-line (Red), Select (Green)
- Keyboard Status
- Saved & Restored
- Power Adapter
- Input: 100 ~ 240 V AC 50~60 Hz
- Output: 9 V DC 1 A external power adapter
- Dimensions
- 407 x 165 x 45mm (16.0 x 6.5 x 1.8in.)
- Weight
- 2.04kg (4.5lb)
- Temperature
- Operating: 0°C~40°C (32°F~104°F)
- Storage: -20°C~60°C (-4°F~140°F)
- Humidity
- Max. 80% (non-condensing)
- Certification
- CE, FCC
Package Contents
- TK-1603R
- Quick Installation Guide
- Power Adapter (9 V DC, 1 A)
- Rack Mount Kit
The manufacture company
TRENDnet
Product Specification
Interface
- 1 x USB (Type A) ,
- 1 x VGA HDB 15-pin (male)
Output power
- 9 V DC 1 A external power adapter
Input Power
- 100 ~ 240 V AC 50~60 Hz
Dimension
- 407 x 165 x 45mm (16.0 x 6.5 x 1.8in.)
الوزن
- 2.04kg (4.5lb)
Operating Temperature
- Operating: 0°C~40°C (32°F~104°F) ,
- Storage: -20°C~60°C (-4°F~140°F)
