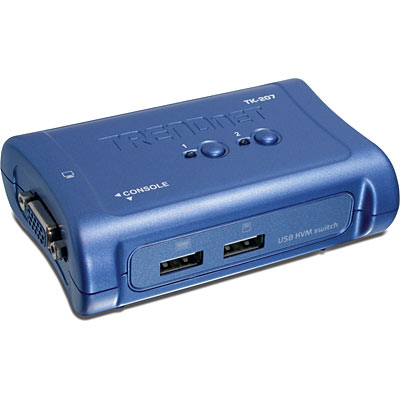

TK-207K-2-Port USB KVM Switch Kit
Please sign in so that we can notify you about a reply
 |
The 2-Port USB KVM Switch Kit lets you manage two PC’s with just one set of keyboard, monitor, and mouse. Switch between two PC’s with a simple press of a button! Separate sets of KVM cables are included with the KVM Switch, so users can start controlling 2 PC’s instantly. The KVM cables also provide power to the KVM Switch, eliminating the need for a power adapter. Hot Key operations provide immediate access to features such as computer switching, and auto-scanning. With its Hot-Plug, and Audible Feedback, the 2-Port USB KVM Switch is the perfect choice for managing multiple PC’s. |
- Control up to 2 computers / servers with one set of console device
- USB keyboard / mouse emulation with 2 sets of detachable KVM cables
- Compliant with Windows and Linux
- High video quality: up to 2048 x 1536 VGA resolution
- Auto-scan and LED display for computer monitoring
- Keyboard status restored when switching between computers
- Computer selection by front panel push buttons, keyboard hot key commands or Windows-based client switching software*
- User definable hot key (Windows only)
- USB interface power method
- Plug & Play and hot-pluggable
-
- Hardware
- Connections
- 2 computers
- USB Interface
- USB 1.1 compliant
- KVM Cable
- 2 sets of 1.2 m (4 ft.) USB KVM cables
- Cable Interface
- To KVM
- 1 x VGA / SVGA HDB 15-pin (male)
- To Computer
- 1 x USB (type A)
- 1 x VGA / SVGA HDB 15-Pin (male)
- PC Port Connectors
- 2 x VGA / SVGA HDB 15-pin (female)
- Console Port Connectors
- 2 x USB Keyboard / Mouse: (type A)
- 1 x VGA / SVGA 15-pin HDB (female)
- Computer Selection
- Face panel push buttons, keyboard hot key commands or Windows-based client switching software*
- Supported OS
- Windows and Linux
- Auto-Scan Interval
- 10 seconds
- Keyboard State
- Save and restore
- Power Type
- USB interface power
- Dimensions
- 98 x 70 x 28 mm (3.86 x 2.76 x 1.1 in.)
- Weight
- 99 g (3. 4oz)
- Temperature
- Operating: 0°C ~ 40°C (32°F ~104°F)
- Storage: -20°C ~ 60°C (-4°F ~140°F)
- Humidity
- Max 90% (non-condensing)
- Certifications
- CE, FCC
Package Contents
- TK-207K
- Quick Installation Guide
- 2 sets of USB KVM cables (2 x 1.2 m / 4 ft.)
The manufacture company
TRENDnet
Product Specification
Interface
- 1 x VGA / SVGA HDB 15-pin (male)
USB
- 1 x USB (type A) ,
- 1 x VGA / SVGA HDB 15-Pin (male)
Dimension
- 98 x 70 x 28 mm (3.86 x 2.76 x 1.1 in.)
الوزن
- 99 g (3. 4oz)
Operating Temperature
- Operating: 0°C ~ 40°C (32°F ~104°F) ,
- Storage: -20°C ~ 60°C (-4°F ~140°F)
