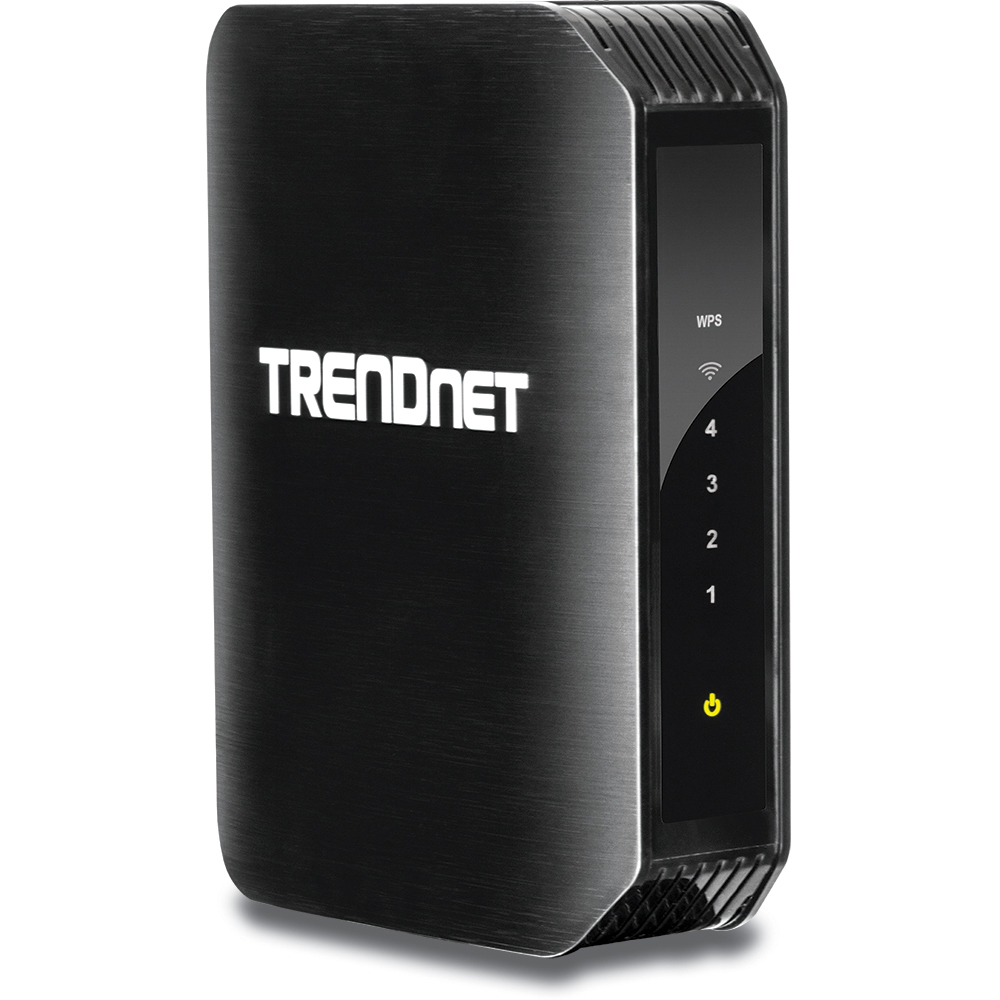

TEW-750DAP N600 Dual Band Access Point
Please sign in so that we can notify you about a reply
TRENDnet’s N600 Dual Band Wireless Access Point, model TEW-750DAP, supports Access Point (AP), Wireless Distribution System (WDS) Bridge, AP + WDS, Repeater, and Client Bridge mode functionality. A convenient wireless scan feature streamlines the WDS setup process. Embedded GREEN-net technology reduces power consumption by up to 50%. Multiple SSIDs are supported for each band.
| Ease of Use | |
 |
Multi-Mode Support Supports Access Point (AP), WDS Bridge, and WDS Bridge + Access Point, Repeater, and Client Bridge modes |
 |
WDS Wireless Scan Wireless Scan support for WDS setup automatically populates MAC address |
 |
One Touch Connection Connect to the wireless network at the touch of the Wi-Fi Protected Setup (WPS) button |
|
Multi Language Multi Language Interface: English, Spanish, French, German, and Russian |
 |
Logs Real time logs and statistics help trouble shooting |
| Encryption | |
 |
Encrypted Wireless Support for wireless encryption of up to WPA2 |
 |
Multiple SSIDs Create multiple SSIDs per wireless band |
| Performance | |
 |
N600 Wireless Proven concurrent dual band 300 Mbps Wireless N |
 |
Wireless Coverage Extended wireless coverage with MIMO antenna technology |
 |
Compatibility Compatible with legacy wireless devices |
 |
Energy Savings Embedded GREENnet technology reduces power consumption by up to 50% |
 |
IPv6 IPv6 network support |
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n (dual band up to 300 Mbps)
- Device Interface
- 4 x 10/100 Mbps LAN ports
- Power switch
- WPS button
- LED indicators
- Encryption
- Wireless encryption up to WPA2
- Special Features
- AP, WDS, AP + WDS, Repeater, and Client Bridge modes
- Four LAN ports
- IPv6 support
- Energy saving GREENnet technology
- Multiple SSID support per band
- Antenna Gain
- 2.4 GHz: 2 x 1.5 dBi internal PIFA/5 GHz: 2 x 4 dBi internal PIFA
- Wireless Output Power/Receiving Sensitivity
- 802.11a: 15 dBm (typical)/-65 dBm (typical) @ 54 Mbps
- 802.11b: 18 dBm (typical)/-76 dBm (typical) @ 11 Mbps
- 802.11g: 15 dBm (typical)/-65 dBm (typical) @ 54 Mbps
- 802.11n: 15 dBm (typical)/-61 dBm (typical) @ 300 Mbps (for 2.4 GHz & 5 GHz)
- Power
- Input: 100 - 240 V AC, 50 - 60 Hz, 0.4 A
- Output: 12 V DC, 1 A
- Consumption: 10.1 Watts (max.)
- Operating Temperature
- 0 - 40°C (32 - 104°F)
- Operating Humidity
- Max. 95% non-condensing
- Certifications
- CE
- FCC
- Dimensions
- 45 x 118 x 164 mm (1.8 x 4.6 x 6.5 in.)
- Weight
- 238 g (8.4 oz)
- Warranty
- 3 year limited
Package Contents
- TEW-750DAP
- Multi-language Quick Installation Guide
- CD-ROM (User’s Guide)
- Network cable (1.5 m/5 ft.)
- Power adapter (12 V, 1 A)
The manufacture company
TRENDnet
Product Specification
LAN Port 10/100
4 ports
Antenna Gain
- 2.4 GHz: 2 x 1.5 dBi internal PIFA/5 GHz: 2 x 4 dBi internal PIFA
Output power
- Output: 12 V DC, 1 A external power adapter
Input Power
- Input: 100 - 240 V AC, 50 - 60 Hz, 0.4 A
Dimension
- 45 x 118 x 164 mm (1.8 x 4.6 x 6.5 in.)
الوزن
- 238 g (8.4 oz)
