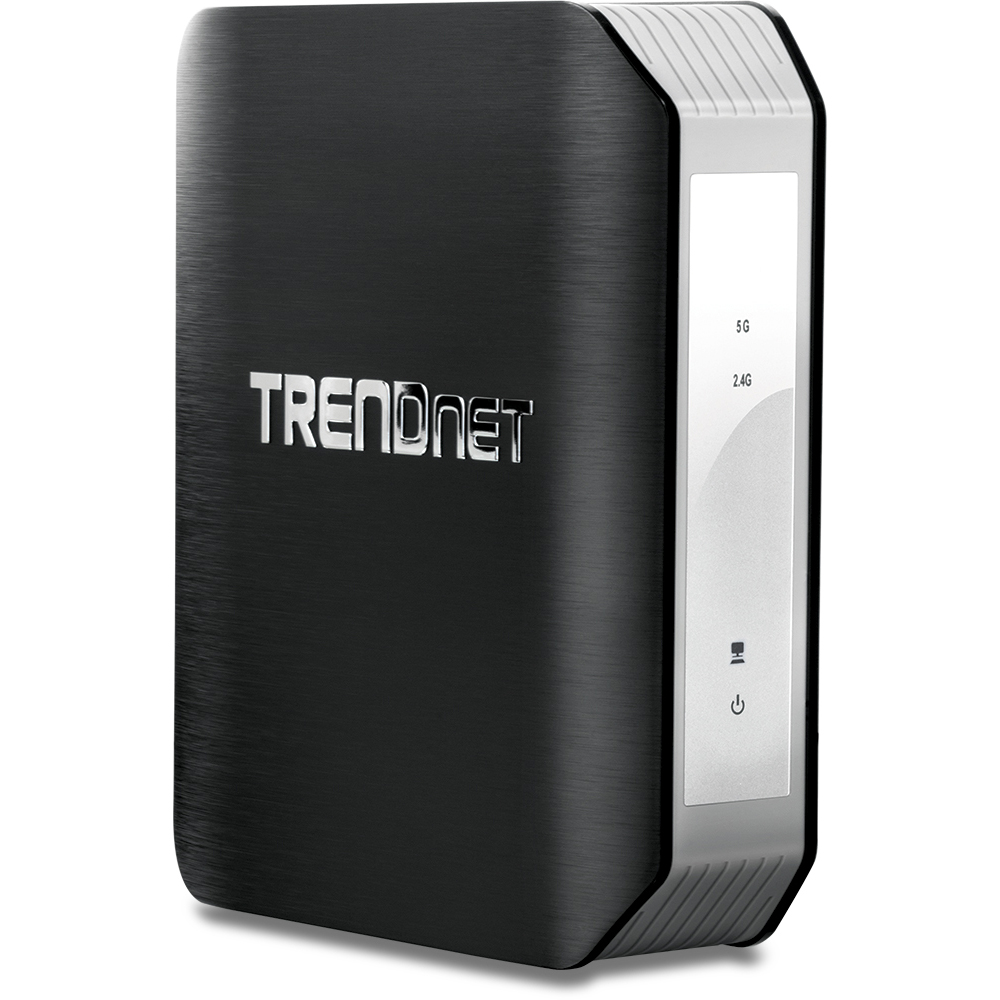

TEW-815DAP AC1750 Dual Band Wireless Access Point
Please sign in so that we can notify you about a reply
TRENDnet’s high performance AC1750 Dual Band Wireless Access Point, model TEW-815DAP, supports Access Point (AP), Client, Repeater, Wireless Distribution System (WDS) Bridge, and WDS + AP modes. The TEW-815DAP generates concurrent 1.3 Gbps Wireless AC and 450 Mbps Wireless N networks. Embedded GREENnet technology reduces power consumption by up to 50%.
| Ease of Use | |
 |
Multi-Mode Support Supports Access Point (AP), Client, Repeater, Wireless Distribution System (WDS), and WDS + AP modes |
 |
One Touch Connection Connect to the access point at the touch of the Wi-Fi Protected Setup (WPS) button |
 |
Multi Language Multi Language Interface: English, Spanish, French, German, and Russian |
 |
Logs Real time logs and statistics help trouble shooting |
| Performance | |
 |
Encrypted Wireless Support for wireless encryption up to WPA2 |
 |
Multiple SSIDs Create up to four SSIDs per wireless band |
 |
Next Generation Wireless AC 802.11ac provides uninterrupted HD video streaming in a busy connected environment |
 |
Simultaneous Dual Band High performance 1.3 Gbps Wireless AC + 450 Mbps Wireless N bands |
 |
Wireless Coverage Extended wireless coverage with MIMO antenna technology |
 |
Compatibility Compatible with legacy wireless devices |
 |
Gigabit Port Gigabit LAN port maintains high performance connections to the wired network |
 |
Energy Savings Embedded GREENnet technology reduces power consumption by up to 50% |
 |
IPv6 IPv6 network support |
 |
Targeted Beamforming Increased real-time performance by directing stronger wireless signals to your specific location |
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n (up to 450 Mbps)
- IEEE 802.11ac (draft 2.0, up to 1.3 Gbps)
- Hardware Interface
- 1 x Gigabit port
- Power switch (EU model only)
- WPS button
- LED indicators
- Operation Modes
- Access Point (AP), AP + WDS
- Wireless Distribution System (WDS)
- Repeater
- Client
- Special Features
- Concurrent dual band access point
- 1-to-2 repeater feature: repeats a single wireless band (Ex: 2.4 GHz) to both wireless bands (Ex: 2.4 and 5 GHz)
- IPv6 support (Static IPv6 and Auto-Configuration (SLAAC/DHCPv6))
- Multi-Language interface: English, French, Spanish, German, Russian
- SSID
- Up to 4 SSIDs per band (AP mode)
- Access Control
- Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS (AP mode)
- Access Controls: MAC Filter
- Frequency
- 2.4GHz: FCC 2.412 - 2.462 GHz, ETSI: 2.412 – 2.472 GHz
- 5GHz: FCC 5.180 – 5.240 + 5.745 – 5.825, ETSI: 5.180 – 5.240 GHz
- Modulation
- 802.11b: CCK, DQPSK, DBPSK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM sub carrier with OFDM
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256QAM with OFDM
- Wireless Channel
- 2.4 GHz: FCC: 1-11, ETSI: 1 - 13
- 5 GHz: FCC: 36, 40, 44, 48, 149, 159, 157, 161 and 165, ETSI: 36, 40, 44, 48
- Antenna Gain
- 2.4 GHz: 6 dBi (max.) internal PIFA
- 5 GHz: 6 dBi (max.) internal PIFA
- Wireless Output Power/Receiving Sensitivity
- 802.11a: FCC: 22 dBm, CE: 18 dBm (max.)/-68 dBm (typical) @ 54 Mbps
- 802.11b: 19 dBm (max.)/-84 dBm (typical) @ 11 Mbps
- 802.11g: 18 dBm (max.)/-72 dBm (typical) @ 54 Mbps
- 802.11n: FCC: 18 dBm (max.)/-68 dBm (typical) @450 Mbps 2.4 GHz
- 802.11n: FCC: 22 dBm, CE: 18 dBm (max.)/-68 dBm (typical) @ 450 Mbps 5 GHz
- 802.11ac: FCC: 23 dBm, CE: 19 dBm (max.)/-55 dBm (typical) @ 1.3 Gbps
- Power
- Input: 100 – 240 V, 50 – 60 Hz, 0.8 A
- Output: 12 V DC, 2 A
- Consumption: 20 Watts (max.)
- Operating Temperature
- 0 – 40 °C (32 – 104 °F)
- Operating Humidity
- Max. 85% non-condensing
- Certifications
- CE
- FCC
- Dimensions
- 48 x 155 x 180 mm (1.9 x 6.1 x 7.1 in.)
- Weight
- 340 g (12 oz.)
The manufacture company
TRENDnet
Product Specification
Antenna Gain
- 2.4 GHz: 6 dBi (max.) internal PIFA ,
- 5 GHz: 6 dBi (max.) internal PIFA
Output power
- Output: 12 V DC, 2 A
Input Power
- Input: 100 – 240 V, 50 – 60 Hz, 0.8 A
SSD
Up to 4 SSIDs per band (AP mode)
الوزن
- 340 g (12 oz.)
