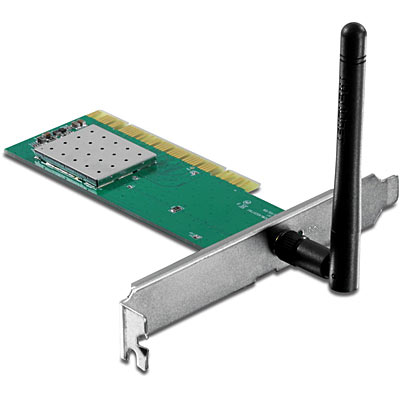

The N150 Wireless PCI Adapter, model TEW-703PI, connects a desktop computer to a high-speed wireless network. This adapter installs quickly to a PCI slot available on a Windows desktop computer. An LED shows the status of the wireless connection. Advanced Wireless Encryption Protects Your Most Valuable Data A removable antenna gives users the ability to change the connected antenna. Stream media, download files and play online on a desktop computer over a wireless connection |
.
- Wi-Fi compliant with standard IEEE 802.11n
- Compatible with older IEEE 802.11b / g devices
- Compatible with infrastructure mode (AP-Client) and Ad-hoc (Client-Client)
- High-speed data transmission up to 150Mbps over an IEEE 802.11n connection
- Dynamic data rate scaling from 150Mbps to 1Mbps
- Maximum reliability, performance and connectivity with automatic data switching
- Supports advanced wireless encryption up to WPA / WPA2-RADIUS
- Easy to set up for users and diagnostic tools
- Coverage of up to 50 meters under roof and 150 meters outdoors
-
*
- Hardware
- Interface
- 32-Bit PCI 2.1 Bus
- Standards
- IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- LED Indicators
- Link / Activity
- Power Consumption
- Receiving mode: 350mA (max.)
- Transmission Mode: 400mA (max.)
- OS Compatible
- Windows® 8.1, 8, 7, Vista and XP
- Dimensions
- 120 x 44 mm (4.7 x 1.75 inches)
- Weight
- 55 g (1.8 oz)
- Temperature
- Operation: 0 ° ~ 40 ° C (32 ° ~ 104 ° F)
- Storage: -10 ° ~ 70 ° C (14 ° ~ 158 ° F)
- Humidity
- 95% max. (sin-Condensing)
- Certification
- CE, FCC
- Wireless
- Modulation
- DBPSK / DQPSK / CCK / OFDM (BPSK / QPSK / 16-QAM / 64-QAM)
- Antenna
- 1 external 2dBi detachable dipole antennas with reverse SMA connector
- Frequency
- 2.412 ~ 2.484 GHz
- Data Transmission (Automatic Recovery)
- 802.11b: up to 11Mbps
- 802.11g: up to 54Mbps
- 802.11n: up to 150Mbps
- Power Output
- 802.11b: 15dBm (typical)
- 802.11g: 14dBm (typical)
- 802.11n: 12dBm (typical)
- Receiving Sensitivity
- 802.11b: -84dBm (typical) @ 11Mbps
- 802.11g: -65dBm (typical) @ 54Mbps
- 802.11n: -61dBm (typical) @ 150Mbps
- Encryption
- 64/128-bit WEP (Hex & ASCII), WPA / WPA2 (TKIP / AES), WPA-PSK / WPA2-PSK
- The
- 1 ~ 11 (FCC), 1 ~ 13 (ETSI)
Package Content
- TEW-703PI
- CD-ROM (guide de l'utilisateur et utilitaire)
- Guide d'installation rapide en plusieurs langues
الشركة المصنعة
TRENDnet
مواصفات المنتج العامة
Operating Frequency
- 2.412 ~ 2.484 GHz
المعيار اللاسلكي
- IEEE 802.11n
Interface
- 32-Bit PCI 2.1 Bus ,
- Compatible with low profile desktop computers
Dimension
- 120 x 44 mm (4.7 x 1.75 in.)
الوزن
- 55 g (1.8 oz)
