TRENDnet TEW-726EC N600 Wireless Dual Band PCIe Adapter
Please sign in so that we can notify you about a reply

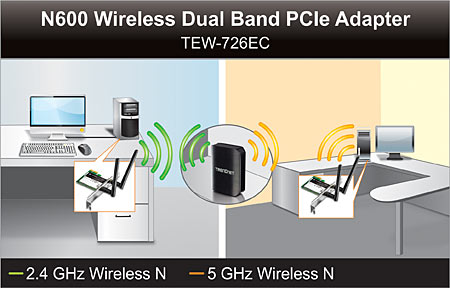

TRENDnet’s N600 Wireless Dual Band PCIe Adapter, model TEW-726EC, upgrades a desktop computer to proven
300 Mbps dual band wireless speed and coverage.
Quickly connect to a common 2.4 GHz or a less congested 5 GHz wireless network to seamlessly stream HD
video and surf the internet. Advanced WPA and WPA2 encryption protects your wireless network.Multiple Input Multiple Output (MIMO)
antenna technology increases wireless coverage and signal strength. WMM® Quality of Service (QoS) technology prioritizes gaming,
Internet calls, and video streams.
- Wi-Fi compliant with IEEE 802.11n standard (dual band 802.11n 2.4 GHz or 5 GHz connection)
- Backwards compatible with IEEE 802.11g, IEEE 802.11b, and IEEE 802.11a networks
- Detachable antennas
- Low profile bracket included
- LED activity indicator
- Interface PCI Express
- Multiple Input Multiple Output (MIMO) antenna technology
- Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
- Supports Infrastructure mode via Access Point and ad-hoc network via peer to peer communication
- Maximum reliability, throughput, and connectivity with Automatic Data Rate Switching
- Supports advanced wireless encryption up to WPA2-RADIUS
- Compatible with Windows 8.1 (32/64-bit), Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32-bit), and XP (32/64-bit) operating systems
- Easy user setup & diagnostic utilities
- Coverage of up to 100 meters indoor (330 feet) and 300 meters outdoor (980 feet)*
-
- Hardware
- Interface
- PCI Express 1.0
- Standards
- IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- LED Indicator
- Data transmission: blinking
- Link established: solid
- WPS (Wi-Fi Protected Setup): blinking rapidly
- Disconnected: blinks every ten seconds
- Power Consumption
- Transmit mode: 670 mA max
- Receive mode: 350 mA max
- Supported OS
- Windows 8.1 (32/64-bit), Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32-bit), XP (32/64-bit)
- Dimensions
- 66 x 55 mm
- Weight
- 45 g (1.6 oz)
- Temperature
- Operating: 0° ~ 40° C (32° ~ 104° F)
- Storage: -20° ~ 75° C (-4° ~ 167° F)
- Humidity
- 90% max (non-condensing)
- Certifications
- CE, FCC
- Wireless
- Modulation
- DBPSK, DQPSK, DSSS, CCK, BPSK, QPSK, 16-QAM/64-QAM with OFDM
- Antenna
- 2 x 2 dBi dipole detachable antennas with reverse SMA connector
- Frequency
- 802.11b/g/n: 2.400 ~ 2.483 GHz
- 802.11a/n: 5.150 ~ 5.350 GHz / 5.725 ~ 5.825 GHz (FCC)
- 802.11a/n: 5.150 ~ 5.350 GHz / 5.470 ~ 5.725 GHz (ETSI)
- Data Rate (auto fallback)
- 802.11a: up to 54 Mbps
- 802.11b: up to 11 Mbps
- 802.11g: up to 54 Mbps
- 802.11n: up to 300 Mbps (for 2.4 or 5 GHz)
- Output Power
- 2.4 GHz: Typical RF Output Power (tolerance +/- 2 dB) 802.11b: 18 dBm
- 802.11g: 18 dBm
- 802.11n: HT20: 18 dBm
- 802.11n: HT40: 13 dBm
- 5 GHz: Typical RF Output Power (tolerance +/- 2 dB) 802.11a: 16 dBm
- 802.11n: HT20: 13 dBm
- 802.11n: HT40: 13 dBm
- Receiving Sensitivity
- 802.11a: -65 dBm (typical) at 54 Mbps
- 802.11b: -76 dBm (typical) at 11 Mbps
- 802.11g: -65 dBm (typical) at 54 Mbps
- 802.11n: -62 dBm (typical) at 300 Mbps (for 2.4 or 5 GHz)
- Encryption
- 64/128-bit WEP, WPA / WPA2-PSK, WPA/WPA2-RADIUS
- Channels
- 2.4 GHz: 1~11 (FCC), 1~13 (ETSI)
- 5 GHz: 36, 40, 44, 48, 149, 153, 157, 161, 165 (FCC) 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 (ETSI)
Package Contents
- TEW-726EC
- CD-ROM (Utility & User’s Guide)
- Multi-Language Quick Installation Guide
- Standard & Low Profile Brackets
The manufacture company
TRENDnet
Product Specification
Operating Frequency
- 802.11a/n: 5.150 ~ 5.350 GHz / 5.470 ~ 5.725 GHz (ETSI) ,
- 802.11a/n: 5.150 ~ 5.350 GHz / 5.725 ~ 5.825 GHz (FCC) ,
- 802.11b/g/n: 2.400 ~ 2.483 GHz
Antenna Gain
- 2 x 2 dBi dipole detachable antennas with reverse SMA connector
المعيار اللاسلكي
- IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Interface
- PCI Express 1.0
Output power
- 2.4 GHz: Typical RF Output Power (tolerance +/- 2 dB) 802.11b: 18 dBm ,
- 5 GHz: Typical RF Output Power (tolerance +/- 2 dB) 802.11a: 16 dBm ,
- 802.11g: 18 dBm ,
- 802.11n: HT20: 13 dBm ,
- 802.11n: HT20: 18 dBm ,
- 802.11n: HT40: 13 dBm
Dimension
- 66 x 55 mm
الوزن
- 45 g (1.6 oz)
