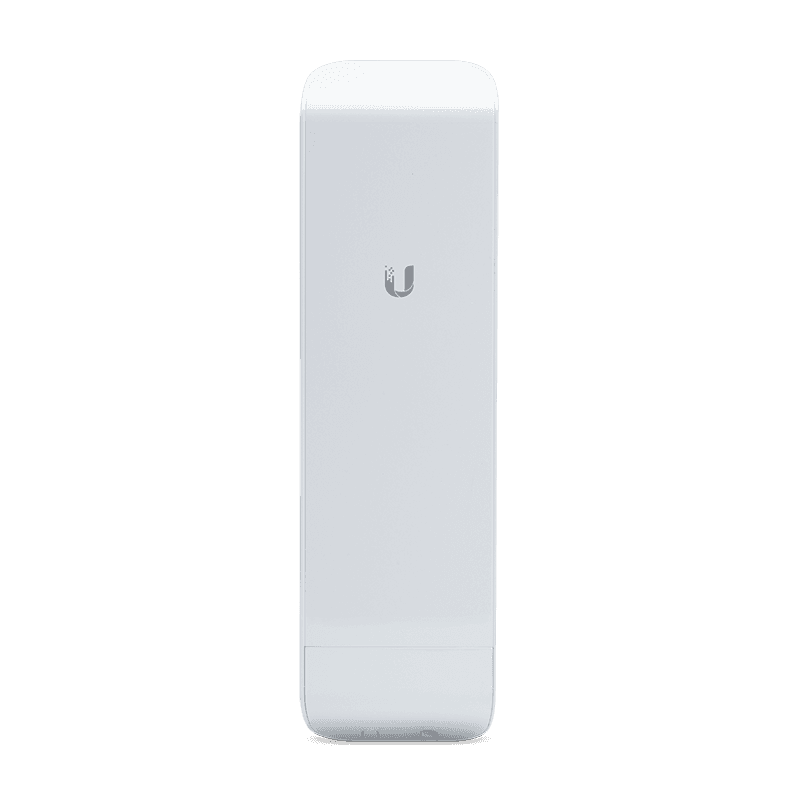

Ubiquiti NanoStation M5 MIMO, Point-to-Point Wireless Bridge/Base Station (NSM5)

The Ubiquiti NanoStation M5 (NSM5) is a high performance, low cost and extremely versatile Point-to-Point wireless bridge.

The NSM5 comes with a redesigned, sleek and elegant form-factor, along with integrated Ubiquiti airMax (MIMO TDMA Protocol) technology.

Ubiquiti NanoStation M5 Key Features:

• Great Performance

• Dual Ethernet Connectivity

• PoE Enabled

• Frequency 5 GHz

• Throughput 150+ Mbps

• Range 15+ km

The Ubiquiti NanoStation M5 features 150+ Mbps real outdoor throughput and up to 15km+ range, with 2x2 MIMO technology,

 meaning the NSM5 links significantly faster and further than ever before.

Next-Gen Antenna Design
New antenna array designs featuring 16dBi dual-polarity gain at 5GHz. Optimised cross-polarity isolation and in a compact form-factor.

Integrated AirMax Technology
Unlike standard WiFi protocol, Ubiquiti's Time Division Multiple Access (TDMA) AirMax protocol allows each client to send and

receive data using pre-designated time slots scheduled by an intelligent AP controller.

Dual Ethernet Connectivity
The Ubiquiti NanoStation M5 provides a secondary Ethernet port with software enabled PoE output for seamless IP Video integration.

Intelligent PoE
Remote hardware reset circuitry of Ubiquiti NanoStation M5 allows for device to be reset remotely from power supply location. In addition,

any Ubiquiti NanoStation M5 can easily become 802.3af 48V compliant through use of Ubiquiti's Instant 802.3af adapter. Remote reset is an additional option.

AirOS V
Version 5 of Ubiquiti's airOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.
